Electric Vehicle Chargers

We install Electric Vehicle (E.V.) charging stations and wiring.

EVs will typically charge up to 80% of the breaker capacity. If we install a NEMA 14-50 outlet (240V, 50Amp), your electric vehicle will typically draw up to 40Amps or about 9600 Watts.

New homes in Flagstaff are now required to be pre-wired for 240V in the garage to allow for future installation of an EV charging station. We recommend installing the NEMA 14-50 receptacle because it is very common and also very adaptable to other types of plugs.

The modern garage will feature its own 100Amp sub-panel which will allow for a 60Amp charging station to be installed as well as additional outlets.

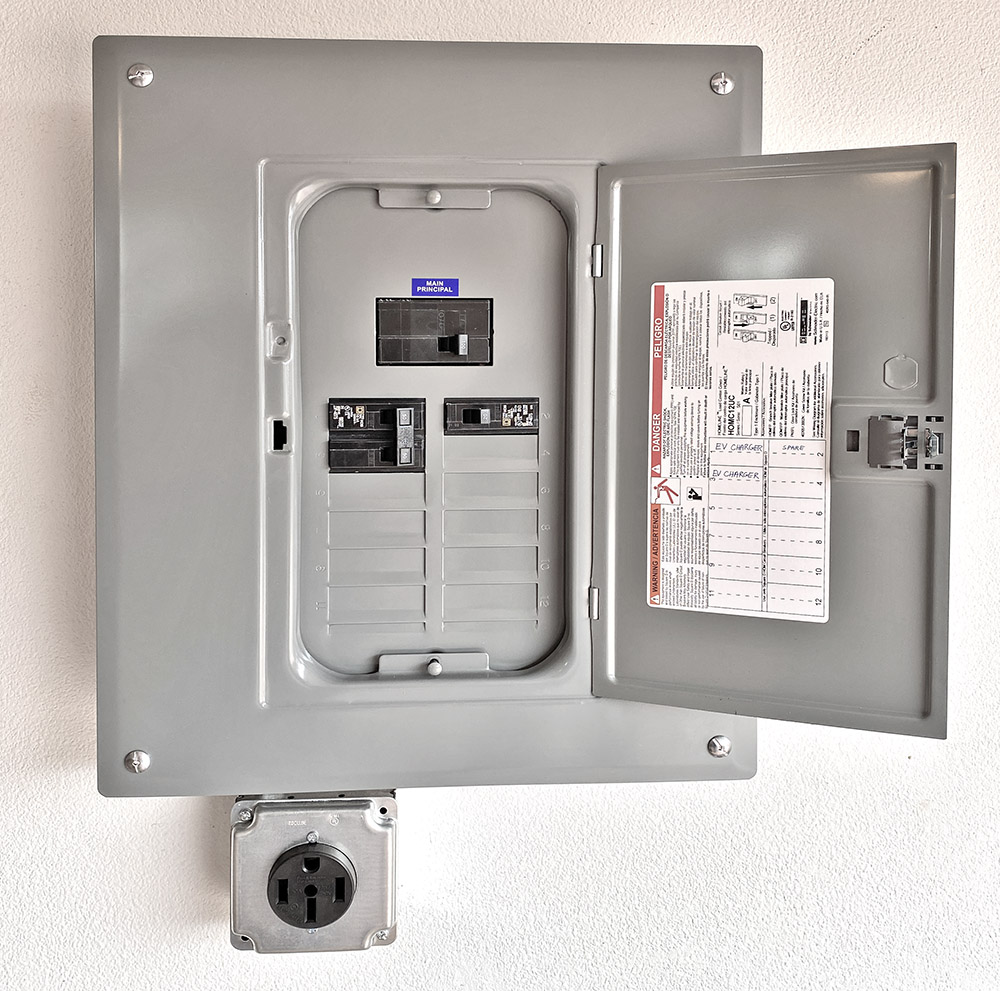

Here is an example of a 100Amp sub-panel in a garage in Sedona with 50Amp 240V outlet for charging an Electric Vehicle:

100 amp subpanel in a garage in Sedona with a 50 amp NEMA 14-50 outlet for EV charging

The extra breaker slots in the panel can be used for dedicated car charging stations, a dedicated freezer outlet and for all garage outlets.
The NEMA 14-50 receptacle can rapidly charge Elecric Vehicles.
